Wheels suitable for small movements

Industrial wheels and castors

Wheels and rollers

Rubber-coated polypropylene wheels.

Monolithic wheel in black polypropylene coated with black synthetic rubber. Plain bore operation.

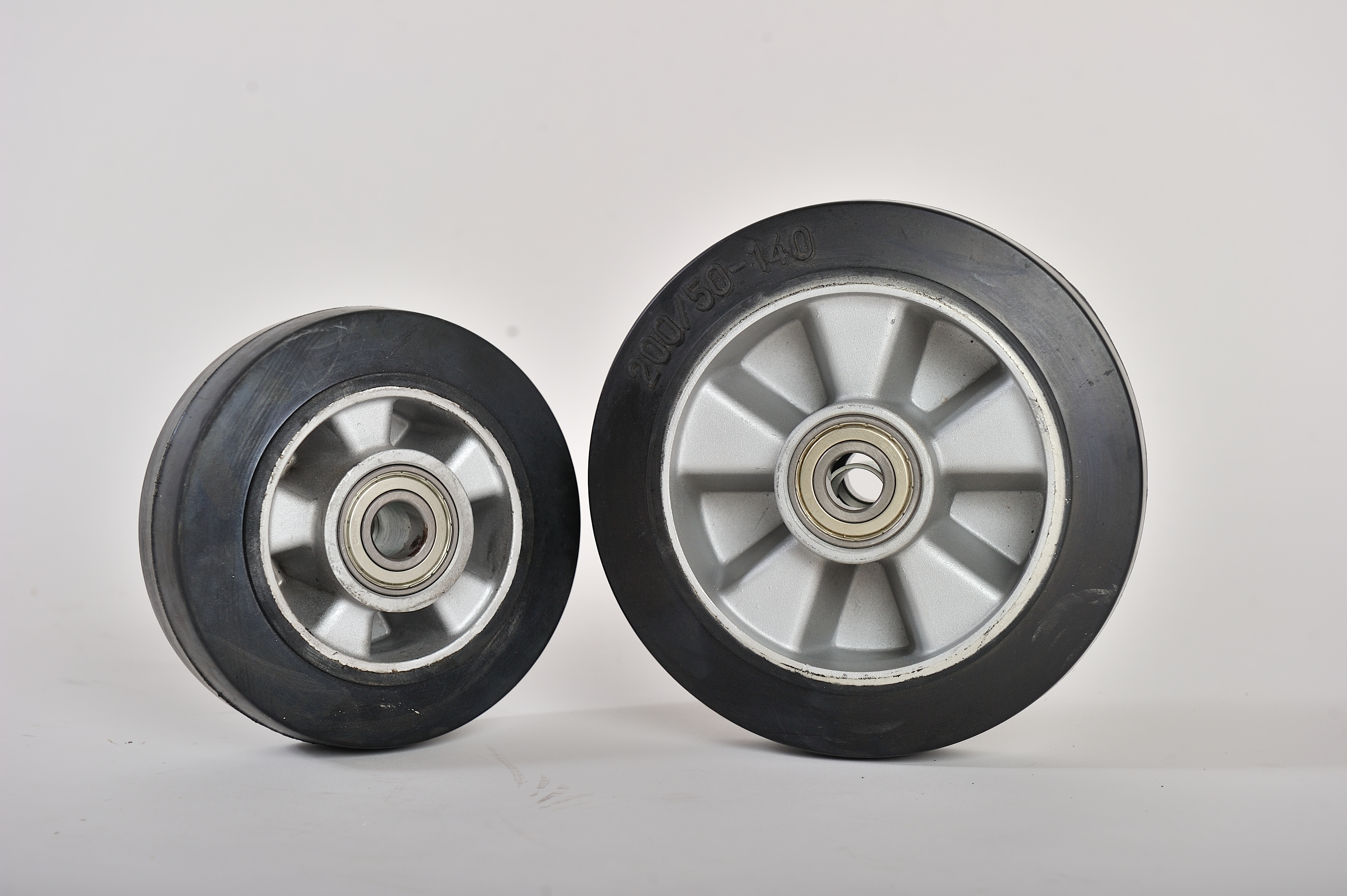

Aluminum wheels with elastic rubber ring.

Coating in elastic rubber, hardness 72±3 Shore A.
Hub in aluminum alloy. Ball bearing operation. Operating temperature from -15°C to +60°C

Vulkolan rollers.

Coating in cast polyurethane with a hardness of 92±2 Sh.A. Steel hub. Running on ball bearings. Operating temperature from -20ºC to +80ºC. Good resistance to oils and greases.

Request info

A

Technical data sheet

Code O.D.
(mm)
 Width
(mm)
 Hub lenght
(mm)
 Hole
(mm)
 Load capacity
(Kg)
RRA80 80 26 35 8/10 30
RRA100 100 30 35 8/10 35
RRA125 125 35 44 15 50
RRA150 150 40 44 15 80
RRA175 175 45 58 20 100
RRA200 200 50 58 20 120
RRA250 250 60 74 20/25 150
RRA300 300 60 74 20/25 150

ELS

Technical data sheet

Code O.D.
(mm)
 Width
(mm)
 Hub lenght
(mm)
 Hole
(mm)
 Ball bearing seat
(mm)
 Load capacity
(Kg)
MI12550 125 50 60 20 47 x 14 225
MI16050 160 50 60 20 47 x 14 325
MI18050 180 50 60 20 47 x 14 400
MI2005020 200 50 60 20 47 x 14 450
MI2005025 200 50 60 25 52 x 15 450
MI2505025 250 50 60 25 52 x 15 500

VS

Technical data sheet

Code O.D.
(mm)
 Width
(mm)
 Hole
(mm)
 Ball bearing seat
(mm)
 Load capacity
(Kg)
MI7070VS 70 70 15 35 x 11 475
MI8070VS 80 70 20 47 x 14 650
MI8080VS 80 80 20 47 x 14 750
MI80100VS 80 100 20 47 x 14 950
MI8570VS 85 70 20 47 x 14 675
MI8580VS 85 80 20 47 x 14 750
MI8585VS 85 85 20 47 x 14 810
MI8590VS 85 90 20 47 x 14 850
MI85100VS 85 100 20 47 x 14 950
